Parking Control Systems
By establishing the necessary systems for parking operations, we minimize congestion during peak hours and enhance parking convenience.
This system maximizes utilization rates, ensuring high satisfaction for both users and administrators.
Parking Control System Overview
-

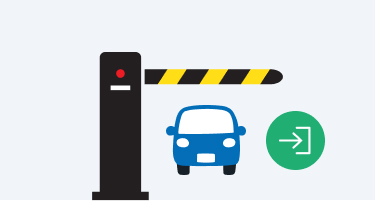

Entry Process
Vehicle Identification: License Plate Recognition (LPR) cameras (Bi-directional or Uni-directional) identify vehicle numbers to distinguish between registered and visiting vehicles.
Access Control: Identified vehicle information is stored in the database, and the gate barrier opens automatically.
-

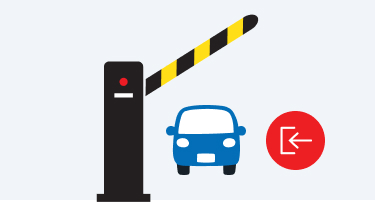

Exit Process
Recognition: Similarly, LPR cameras recognize the license plate at the exit to categorize the vehicle.
Duration Calculation: For visiting vehicles, the system calculates the total parking duration based on entry and exit times.
Fare Input: The calculated fee is automatically transmitted to the unmanned payment terminal.
-
Payment & Completion
Payment Methods: Visiting vehicles can pay fees at the exit-side unmanned payment terminal.
Terminal Options: We offer two types of terminals: Cash + Card or Card-only.
Final Access: Once payment approval is confirmed, the gate barrier opens for exit.

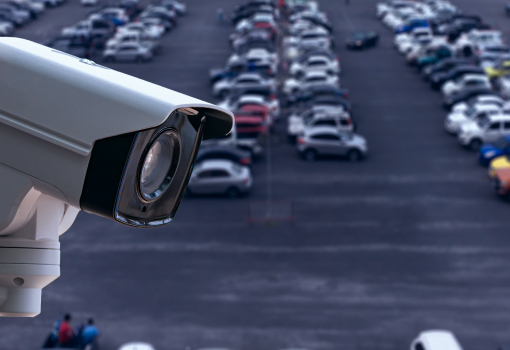

License Plate Recognition (LPR) System
The LPR system captures images of vehicle license plates via camera, instantly recognizes the text strings through advanced image processing, and transmits the processed data to the central computer system.
- Step 01
- Vehicle Entry
- Step 02
- License Plate
Recognition (LPR)
- Step 03
- Gate
Barrier Open
- Step 04
- Parking
- Step 05
- Vehicle Exit
- Step 06
- License Plate
Recognition (LPR)
- Step 07
- Payment
(Cash / Credit Card)
- Step 08
- Gate
Barrier Open
